A portable collaborative-robot palletizer that handles, stacks and places cartons automatically — easy to programme, quick to deploy and built to run 24 hours a day.
| Parameter | Value |
|---|---|
| Palletizing speed | 8–13 cycles / min |
| Payload | 20 kg |
| Working radius | 1700 mm |
| Repeatability | ±0.1 mm |
| Machine weight | ≈ 520 kg |
| Protection | IP54 |
| Footprint | 1400 × 1100 mm |
| Carton size | L 130–530 · W 80–290 · H 90–370 mm |
| Pallet size | up to 1200 × 1200 mm |
Final specification depends on the selected robot model and gripper.

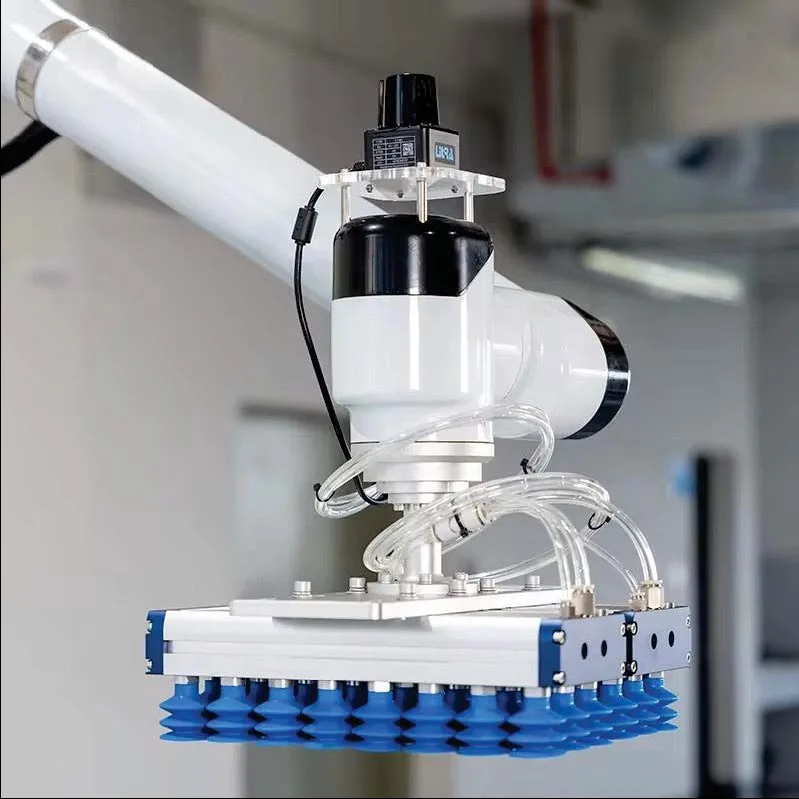

Silicone suction-cup vacuum gripper, six-axis cobot arm, 15.6-inch touch screen and independently developed core components — delivered as a ready-to-run cell with pallet stations and safety.
Share your product, line speed and site — we will recommend the right machine, consumables and service plan within 24 hours.
