Solution 03 · Inspection Systems

Catch every defect before it ships.

Checkweighers, X-ray, metal detection and inline vision with serialisation — so every pack leaving your line is the right weight, contamination-free and correctly coded.

Checkweighers

RE-CW dynamic checkweighers

For electronics, pharma, food, beverage, healthcare, daily chemicals and agrochemicals. 7-inch touch HMI, food-grade PU belt, automatic learning and storage of 100 products, rejection by pusher, flap, air-blow or swing arm.

Specifications

Choose your RE-CW model

	RE-CW 1010	RE-CW 210	RE-CW 310	RE-CW 400
Weighing range	< 200 g	< 1000 g	≤ 3000 g	≤ 40 kg
Minimum scale	0.1 g	0.1 g	0.1 g	1 g
Accuracy	±0.05–0.1 g	±0.3–0.5 g	±0.5–1 g	±5–10 g
Belt speed	10–60 m/min	15–90 m/min	15–90 m/min	10–30 m/min
Weighing belt	250 × 120 mm	400 × 210 mm	450 × 300 mm	900 × 500 mm
Max product size	100 × 100 mm	280 × 200 mm	300 × 290 mm	650 × 490 mm
Power	90 W	150 W	400 W	400 W
Machine size (L×W×H)	900×500×1250	1522×560×1222	1806×855×1180	1888×935×1060
Rejection	Pusher, flap, air blow, swing arm	Pusher, flap, swing arm	Pusher, flap, swing arm	Pusher, flap, swing arm

X-ray inspection

Find what metal detectors can't

Detects stainless-steel balls down to 0.3 mm and wires of 0.2 × 2 mm; ceramic and glass down to 1.0 mm
Works through plastic, aluminium foil, glass and metal containers, and on dense bulk products
15-inch touch screen, self-learning — no manual parameter setting; inspection images saved for traceability
Shield areas that affect accuracy for tailored inspection
X-ray leakage below 1 µSv/h — meets US FDA and European CE standards

Metal detection

Metal detectors & combo systems

Three-coil balanced design with phase tracking, product tracking and automatic balance correction — stable even with high-salt or high-moisture products. 304 stainless steel, multiple reject options.

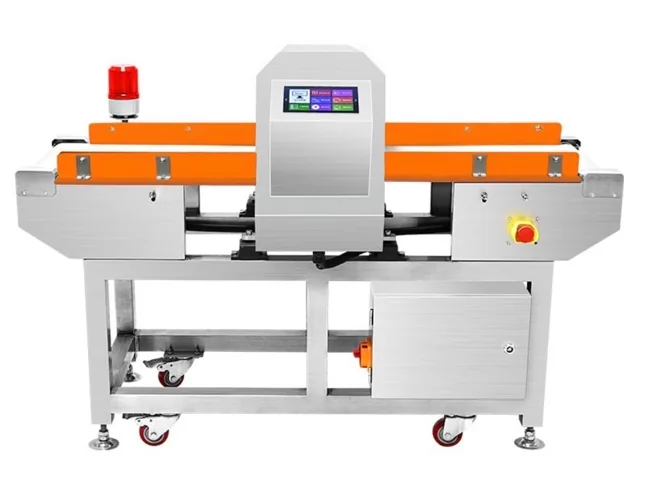

Metal detector

Conveyor metal detector

Automatic learning, adjustable speed, counts and stores pass / fail data.

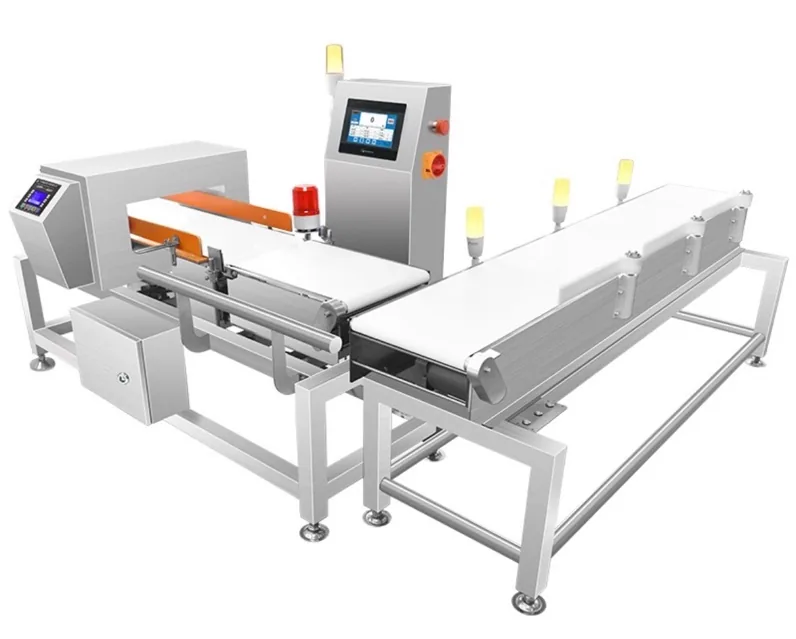

Combo

Metal detector + checkweigher

Up to 280 packs/min with ±0.5 g deviation, touch screen, full weight and detection history.

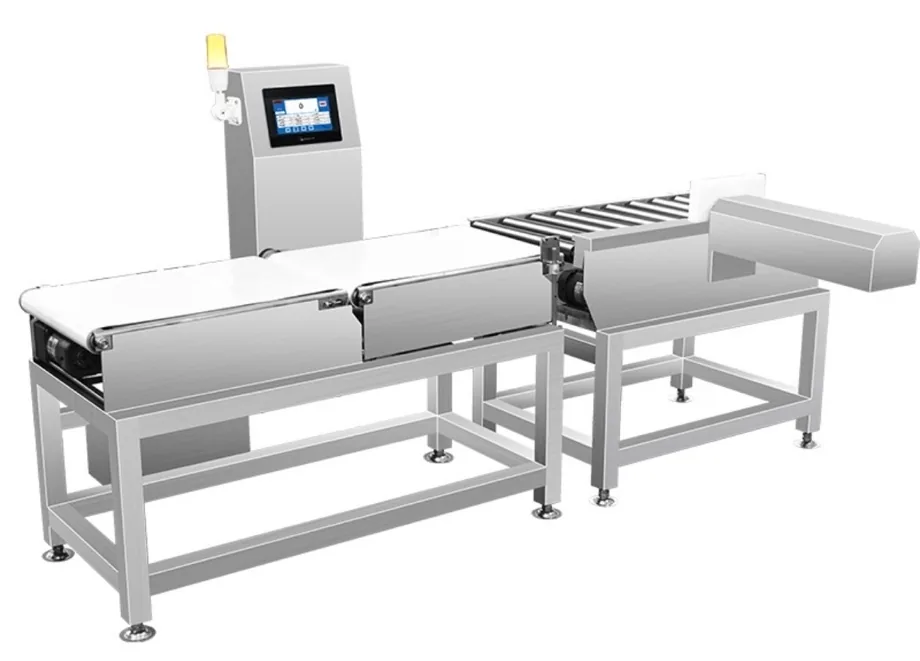

Dynamic weighing

Checkweigher with rejector

Strain-sensor dynamic weighing up to ±0.05 g, auto zero tracking, 304 SS build.

Vision inspection, serialisation & track-and-trace

See every code. Catch every defect.

100% inline verification plus full serialisation — read every code, grade every barcode, serialise every unit and trace it from line to pallet.

180 m/minline speed

1D + 2Dgrade & verify

Unit → Palletserialise & aggregate

OCR / OCV — read printed text and dates and verify against the master
Print presence & quality inspection on every pack
1D & 2D barcode grading — DataMatrix, GS1-128, EAN/UPC
Automatic rejection of unreadable or incorrect packs
Unique serial on every unit + parent-child aggregation to pallet
Line → plant → enterprise software, ERP / MES / WMS integration, EPCIS reporting
Code-status, blocking & recall; encrypted, audit-ready data

Industry	What we verify
Pharma	Serialisation & aggregation, GS1 DataMatrix, batch / mfg / expiry, DSCSA · EU FMD · 21 CFR Part 11
Food & Beverage	Best-before / expiry on every pack, lot & batch legibility, allergen & EAN checks
FMCG	MRP, pack date & batch (Legal Metrology), barcode grading, right SKU / artwork

GS1EPCISUS DSCSAEU FMDANVISASFDAEDA21 CFR Part 11GAMP 5ISA-95Legal MetrologyDQ · IQ · OQ · PQ

Book a free line assessment & live demo →
