The end of the line and the start of the journey — cases erected, packed, sealed, stacked and wrapped for safe transit, by automation or robot.
Automatically forms and bottom-seals RSC cartons from flat blanks at line speed — feeding a steady supply of ready cases downstream.

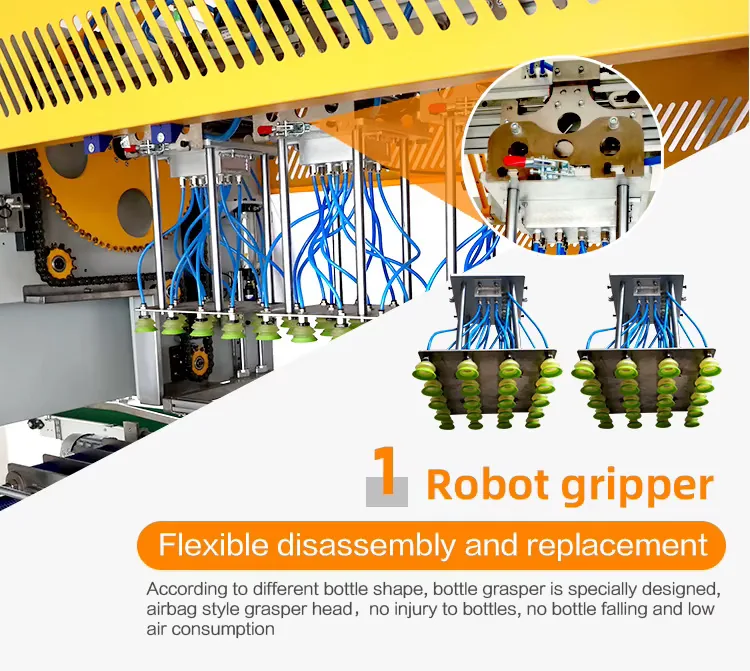

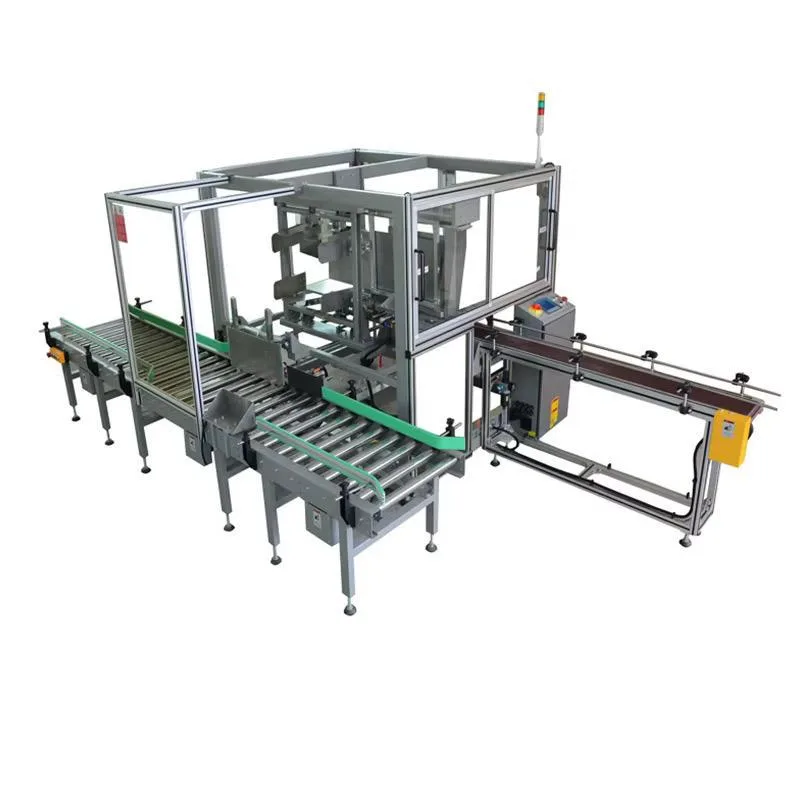

Robotic and gantry pick-and-place loading of products into cases — gentle, accurate and flexible across pack patterns and SKUs.
Top-and-bottom tape sealing for uniform or random case sizes — neat, secure, consistent closure that keeps the line moving.
Articulated and collaborative robots stack cases into stable, optimised pallet patterns — handling mixed SKUs and heavy payloads tirelessly.

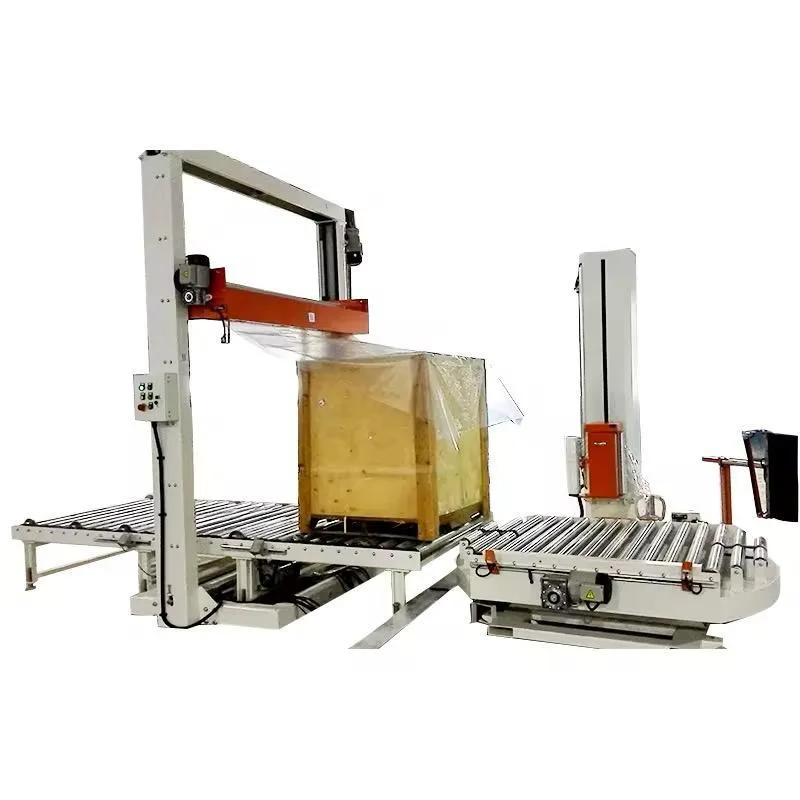

Turntable and ring stretch wrappers that secure finished loads with programmable pre-stretch — for damage-free, dust-proof transit.

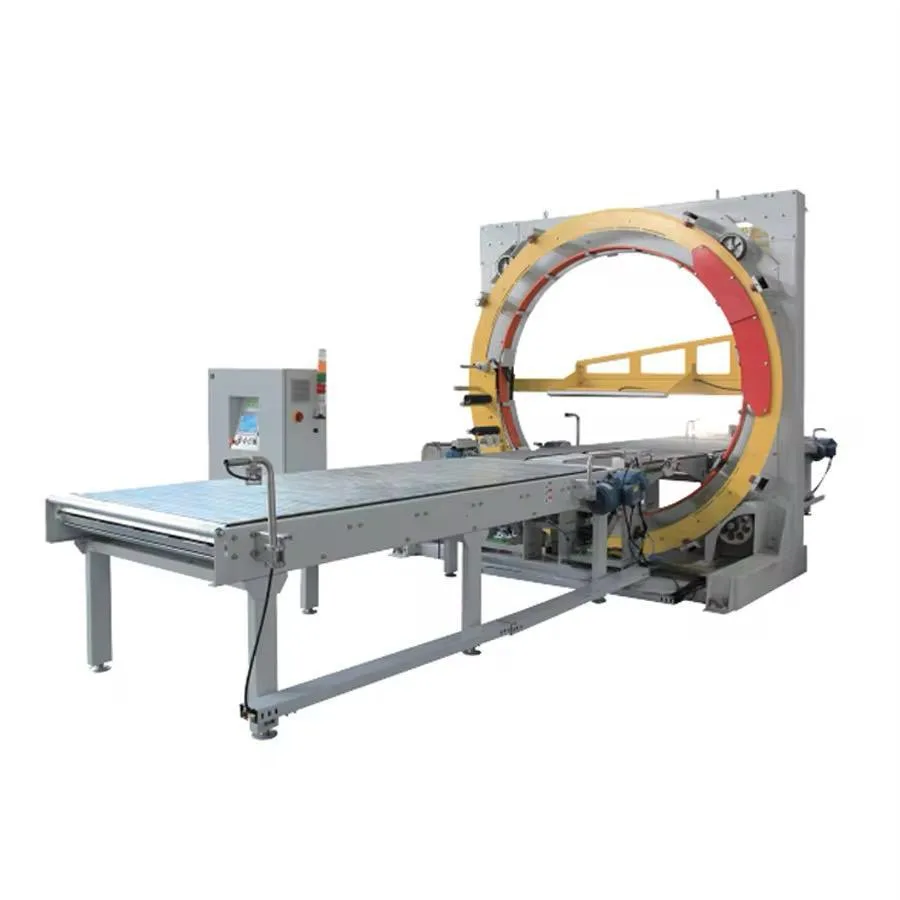

Compact case-level stretch wrapping for stable, sealed unit loads where a full pallet wrap isn't required.
Case packing & palletizing completes the journey. See how it all integrates.

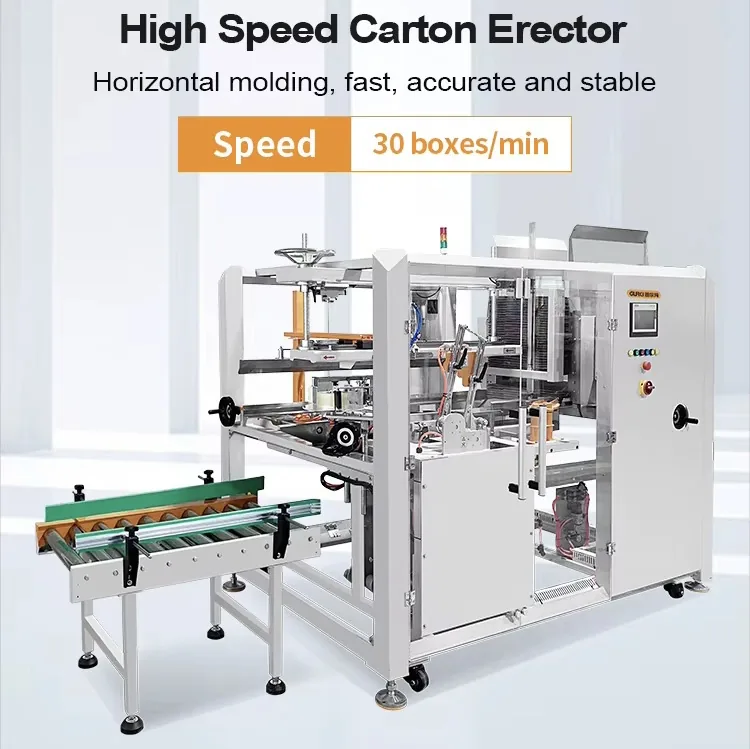

Flat blanks picked, formed and bottom-sealed automatically — high-speed horizontal forming up to 30 boxes/min, PLC control and broken-tape alarms.

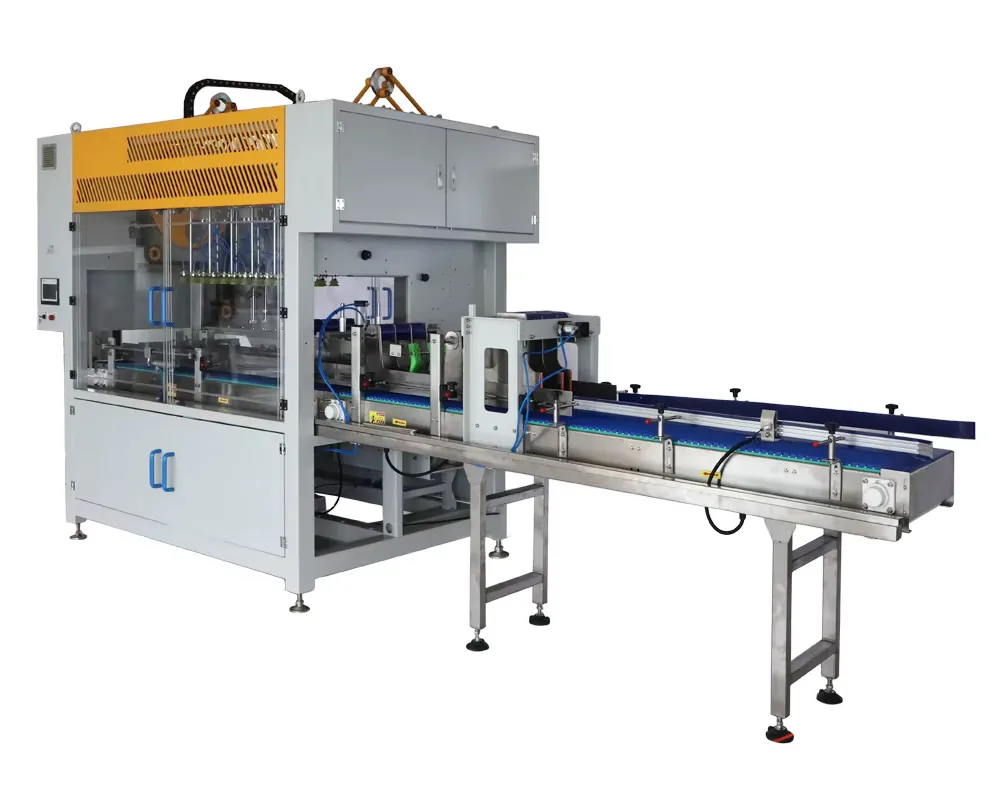

| RE-CPX18 / 24 / 30 | RE-CPH-20SF | |
|---|---|---|
| Type | Grab type (dual sprocket, chain-driven fixture) | Automatic side-loading (side push) |
| Speed | 18–30 cases/min | ≤ 20 cases/min |
| Products | All kinds of bottles and cans | Boxed products — chemicals, pharma, food |
| Grab | 3 or 6 sets / 200 kg | 3 or 6 sets / 200 kg |
| Power | 3-phase 220/380 V, 5 kW | 3-phase 220/380 V, 10 kW |
| Air | 6 kg/cm², 450 ml/min | 0.5–0.7 MPa |
| Machine size | L5500–7500 × W1600 × H2500 mm | L4500 × W1800 × H2000 mm |
| Carton size | — | L300–600 × W220–500 × H200–400 mm |
| Sealing | — | Hot-melt glue / tape |
| Model | Type | Best for |
|---|---|---|
| RE-CSE550TB | Economy, top & bottom drive | Small to medium runs |
| RE-CSH5480TS | Heavy duty, top & side drive | High-volume sealing |
| RE-CSH560TB | Heavy duty, top & bottom drive | Large operations |
| RE-CSM440SD | Mini carton sealer, side drive | Small packages, tight spaces |
| RE-CSH5480SD | Heavy duty, side drive | Tough cartons |
| RE-CRD4845TS | Heavy duty random sealer, top & side drive | Mixed carton sizes |
| RE-CFL4845SD | Automatic flap-folding sealer, side drive | Fully automatic lines |
| RE-CS750 Edge | Edge taping machine | Edge sealing of cartons |
